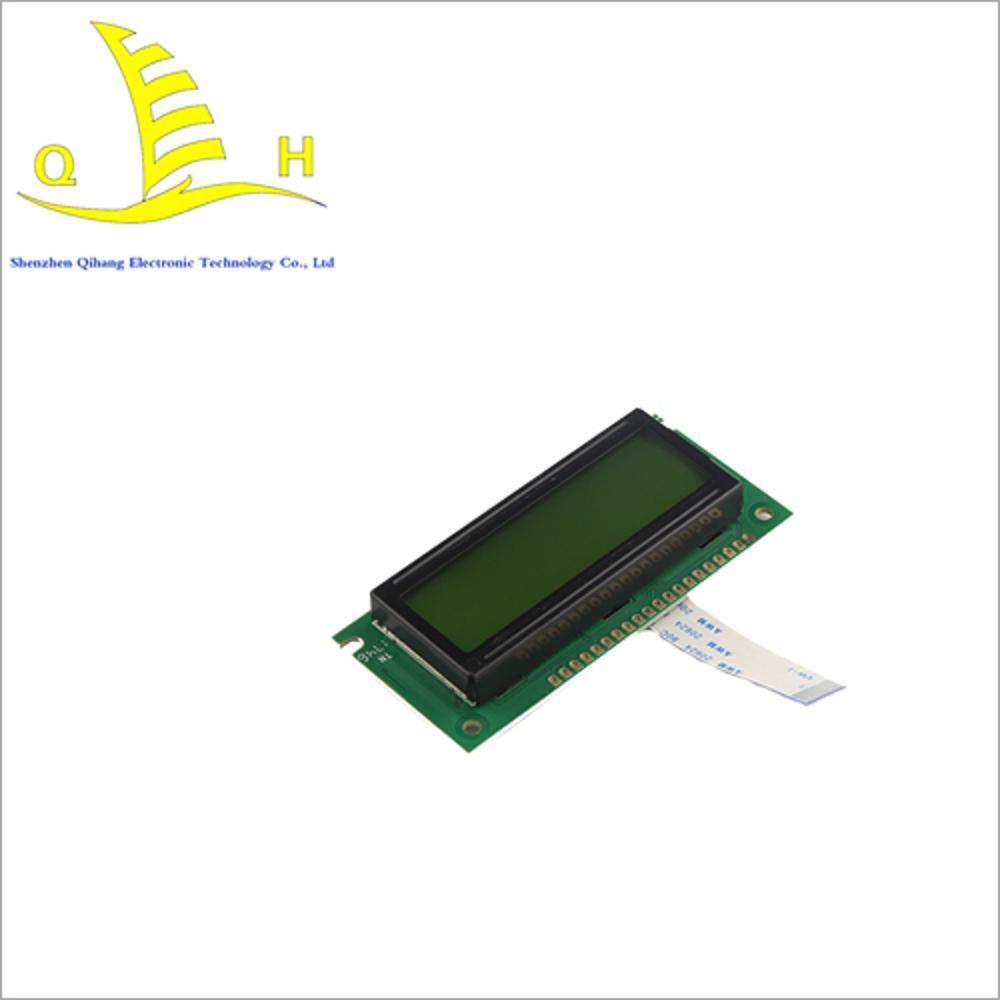

LCD Module, Graphic LCD Display Module, Alphanumeric LCD Display, Industrial LCD Panel

Name: LCD Module, Graphic LCD Display Module, Alphanumeric LCD Display, Industrial LCD Panel
Brand: SHENZHEN QIHANG ELECTRONIC TECHNOLOGY CO,. LTD.
Price: 30 INR
Availability: InStock

Price 30 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LCD Module, Graphic LCD Display Module, Alphanumeric LCD Display, Industrial LCD Panel Specification

Body Material
ABS/Polycarbonate/Glass

Power Supply
Provided via pin header or flex cable

Water Proof
Not waterproof (customizable with enclosure)

Product Type
LCD Module

Application
Industrial Equipment, Consumer Electronics, Instrument Panels

Display Function
Alpha Numeric / Graphic Display

Working Voltage
3.3V - 5V DC

Screen Dimension
16x2 (text) / 128x64 (graphic), or customized

IP Rating
IP20 (standard, higher on request)

Working Temperature
-20C to +70C Celsius (oC)

Pixels
128 x 64 (for graphical model) Pixel (P)

Frame
Plastic / Metal

Size
Standard or Custom Sizes

Color
Green/Blue/Yellow Backlight options

Dimension (L*W*H)
80mm x 36mm x 13mm (typical) Millimeter (mm)

RoHS Compliance
Yes

Life Span
>50,000 hours (backlight)

Mounting Type
Through hole / Panel mount

Dot Pitch
0.52 x 0.52 mm (typical)

Interface
Parallel (6800/8080), SPI, or I2C options

Response Time
< 200 ms at 25°C

Backlight Type
LED backlight integrated

ESD Tolerance
±2kV (Human Body Model)

Viewing Angle
6 o'clock or 12 o'clock, selectable

Drive Method
1/16 or 1/32 duty

Customizable Features
Logo printing, interface pinout, color scheme, size

Storage Temperature
-30°C to +80°C

Contrast Ratio
High contrast, adjustable via potentiometer

Operating Current
1.5mA (typical, without backlight)

LCD Module, Graphic LCD Display Module, Alphanumeric LCD Display, Industrial LCD Panel Trade Information

Minimum Order Quantity
1 Piece

FOB Port
shenzhen

Payment Terms
Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Paypal

Supply Ability
300000 Pieces Per Month

Delivery Time
10-15 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
According the products

Main Export Market(s)
North America, Central America, Middle East, Eastern Europe, Australia, Asia, Africa, Western Europe, South America

Certifications
ROHS/CE

About LCD Module, Graphic LCD Display Module, Alphanumeric LCD Display, Industrial LCD Panel

Take advantage of the finest LCD Module, crafted for enlightened performance and exquisite reliability. Featuring a high contrast ratio adjustable via potentiometer, selectable viewing angles (6 oclock or 12 oclock), and versatile interface optionsParallel (6800/8080), SPI, or I2C. Integrated LED backlight and rapid response time (<200 ms at 25C) ensure seamless alpha numeric or graphic display. With customizable sizes, color schemes, and logo printing, this module is ideal for industrial equipment, consumer electronics, and instrument panels. Enjoy impressive savings with each purchase from our distributor network in China.

Applications and Surface Versatility

Our LCD Module suits a wide range of media, perfect for industrial machinery displays, consumer gadgets, and instrument panels. Ideal application methods include direct panel mounting or secure through-hole installation, depending on the projects demand. The module integrates efficiently on surfaces like ABS, polycarbonate, and glass for optimal use and durability, ensuring adaptability to diverse environments and mounting requirements.

Sample Policy and FOB Details

We offer reliable sample policiessamples are available for examination prior to bulk purchase. Transportation is managed via designated FOB ports, ensuring timely delivery. When placing a purchase order, specify your requirements so that samples can be prepared for drop-off or shipment. Our streamlined process ensures every sample order is treated with priority, helping you make confident decisions for your project needs.

FAQs of LCD Module:

Q: How can I adjust the contrast on the LCD Module?

A: You can adjust the contrast using the integrated potentiometer, allowing you to easily fine-tune display clarity based on viewing conditions.

Q: What customizable features are offered for this LCD Module?

A: Customizable options include logo printing, interface pinouts, display size, color scheme, backlight color, and frame material, letting you match your specific application requirements.

Q: When should I use the 6 oclock or 12 oclock viewing angle setting?

A: Select the 6 oclock or 12 oclock viewing angle depending on the installation position for optimal readability and user experience.

Q: Where can these LCD modules be applied effectively?

A: They are widely used in industrial equipment, consumer electronics, instrument panels, and specialized machinery, offering reliable performance across sectors.

Q: What is the sample acquisition process for this product?

A: Simply place a purchase order detailing your requirements; samples are then prepared and shipped via the specified FOB port for your inspection.

Q: What are the power supply and mounting options for this module?

A: The LCD Module can be powered via pin header or flex cable and offers both panel mount and through-hole mounting options for flexible installation.
